CORDONA 405YAMAM GP SG SWITCH.

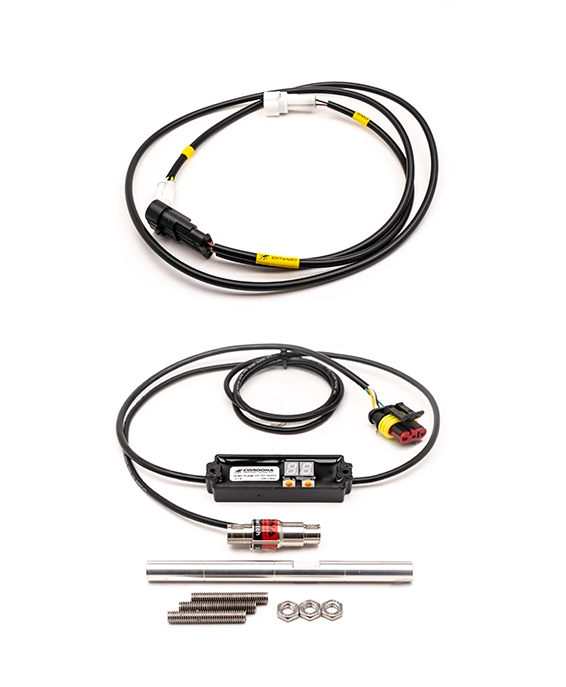

Cordona 405YAMAM GP SG Switch Quickshifter, stand-alone automatic switch for connection to the original ECU. Scope of delivery: sensor with control unit, wiring harness, and aluminum shift rod (170 mm). For Yamaha.

general description
The Cordona GP SG Switch Quickshifter features strain gauge/force cell technology without moving parts, delivering exceptionally smooth and precise shifting. Adaptive Direction Sensing detects both pulling and pushing upshifts. Based on the driver's specification during installation, the system learns whether the upshift is triggered by pushing or pulling tension. Programming is performed via two small buttons and can be monitored on a small LED display.
The Cordona GP SG Switch Quickshifter comes in a small, handy design with a diameter of just 14mm and no moving parts. It also includes a wiring harness with a 12V power cable, a 170mm aluminum rod, and M6 nuts and bolts.

Other options:
- Fully computer controlled, 25Mhz processor
- Quick and easy plug & play installation of the electronics
- Automatic compensation of temperature, creep and vibration
- Preload adjustment on miniature digital panel up to 1m from switch, adjustable 1-40kg
- With version 1.2, adjustable between generally open and generally closed circuit
- Fully waterproof with sealed connectors
- Configurable push or pull direction
- The sensor is Magic Threaded and accepts both right and left hand screws on each end, allowing the sensor to be mounted anywhere on the shift rod in either orientation
- Shift rod may need to be shortened.
