CORDONA QUICKSHIFTER 425 EVO GP ASG.

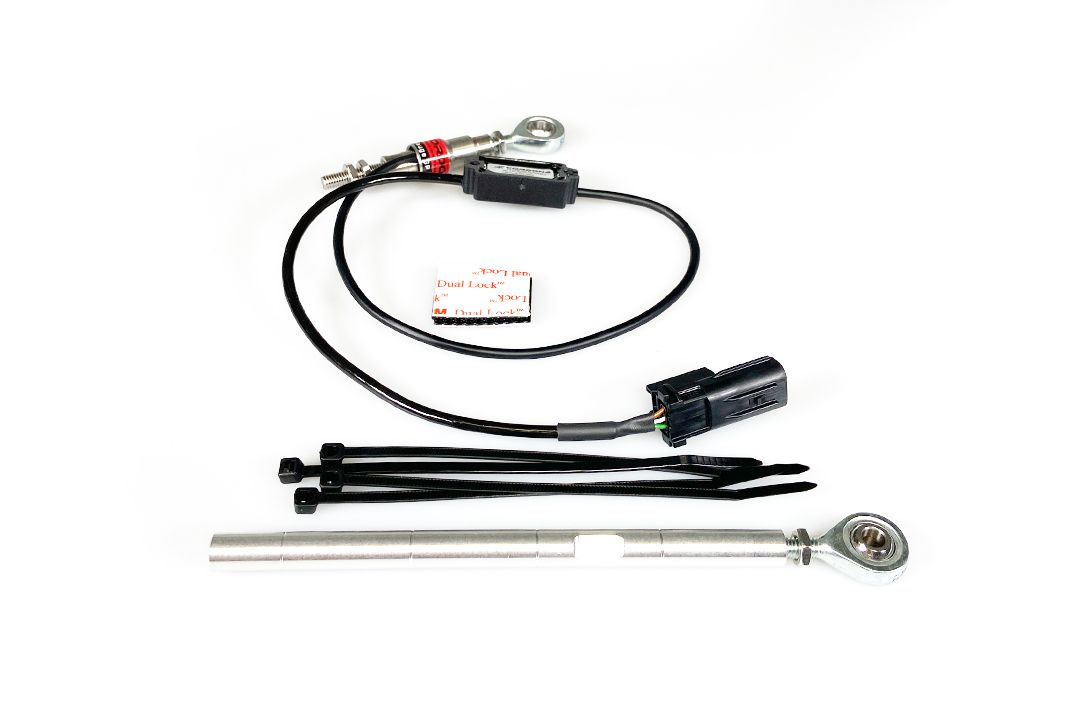

Cordona 425EVO GP ASG Superbike quickshifter with blipper function; Ready-to-install delivery consisting of module, sensor and shift rod (160 mm), for Honda CBR1000RR SP1/SP2, model year 2017-2019.

general description
The CORDONA GP ASG quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitors. It offers superior crisp and smooth shifting performance comparable to Top GP and WSBK systems. It has an analog voltage cell for ECUs with upshift function and automatic blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs for many OEM and flash street bike ECUs with analog 0-5V input.

Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise and smoother. The bike requires less traction control and unbalances the chassis less when shifting gears, especially when leaning.

Specification:
- 0-5v analog high sensitivity voltage meter GP ASG Superbike sensor
- Force cell technology and no moving parts in the sensor
- 5-15v DC power supply
- Analog output to motorcycle ECU, 2.5 V (idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable pull or push direction
- Can be used for ECUs equipped with upshift functionality only
- Fully sealed and weatherproof sensor and module
- High precision CNC machined stainless steel body
- Dimensions: 45mm long, 14mm diameter
- M6 "magic thread", left and right threads in both sensor ends.
