CORDONA QUICKSHIFTER 427EVO-K67 GP ASG.

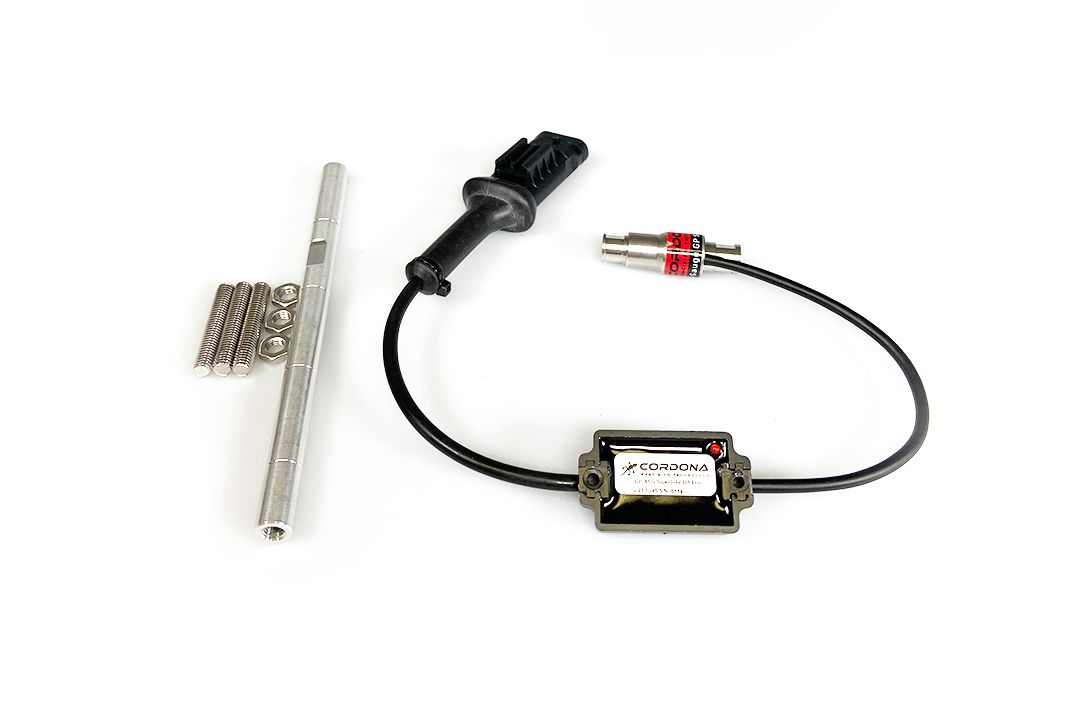

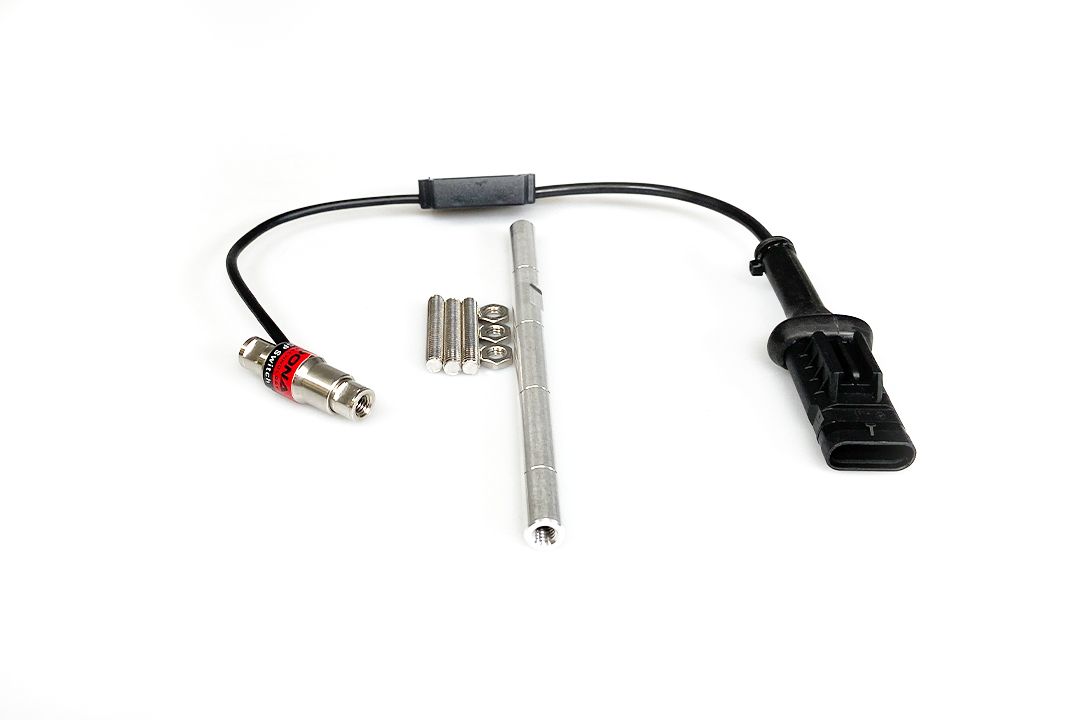

Cordona 427EVO-K67 GP ASG Superbike quickshifter with blipper function; Delivery includes module, sensor and shift rod (150 mm), for BMW
S1000RR, from model year 2019-
M1000RR, from model year 2021-
S1000XR, from model year 2020-

general description
The CORDONA GP ASG quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitors. It offers superior, crisp, and smooth shifting performance, comparable to top GP and WSBK systems. It features an analog voltage cell for ECUs with upshifting function and an automatic blipper for downshifting. Used by high-end ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, and many OEM and high-end street bike ECUs with analog 0-5V input.

Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. It requires less traction control and creates less chassis imbalance during shifting, especially when leaning.

Specification:
- 0-5v analog high-sensitivity voltage meter GP ASG Superbike sensor
- Force cell technology and no moving parts in the sensor
- 5-15V DC power supply
- Analog output to motorcycle ECU, 2.5 V (idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable pull or push direction
- Can be used for ECUs equipped with upshift functionality only
- Fully sealed and weatherproof sensor and module
- High-precision CNC-machined stainless steel housing
- Dimensions: 45mm long, 14mm diameter
- M6 "magic thread", left and right threads in both sensor ends
