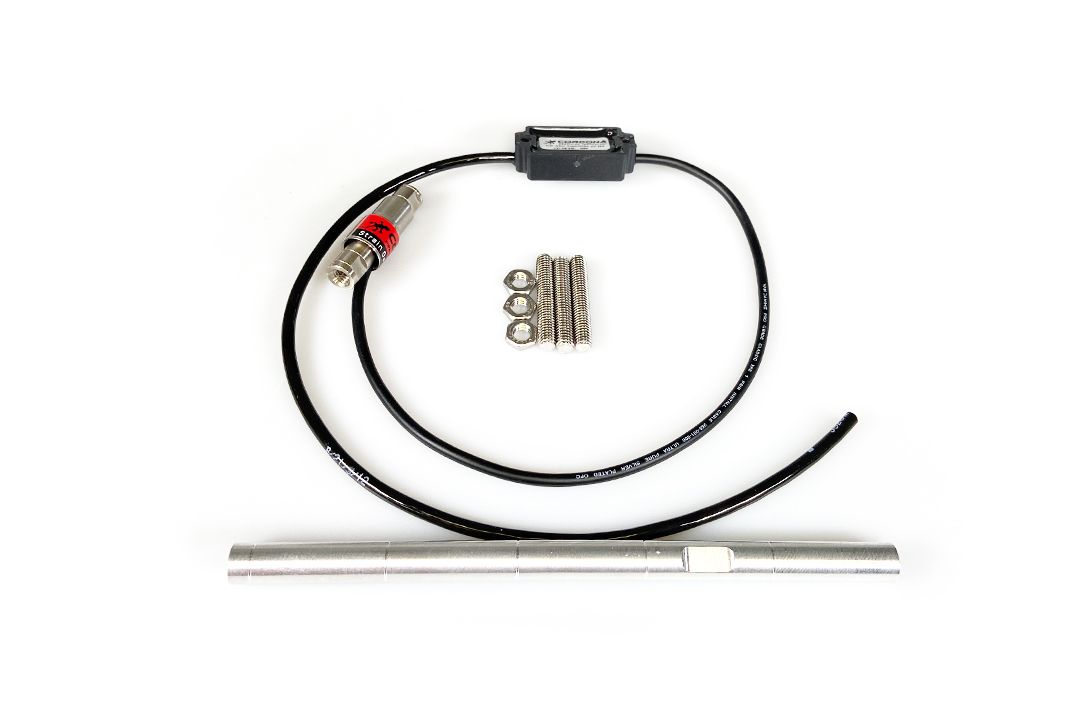

CORDONA QUICKSHIFTER 401SBK90 300N ASG.

Cordona 401SBK60 GP ASG 300N Superbike quickshifter with blipper function; no direct connection to the motorcycle; total cable length from sensor to open end: 90cm.

general description.
The CORDONA GP ASG quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitors. It offers superior crisp and smooth shifting performance, comparable to top GP and WSBK systems. It has an analog voltage cell for ECUs with upshifting function and an automatic blipper for downshifting function. Used by high-end ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, and many OEM and flashy street bike ECUs with analog 0-5V input. Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. The bike requires less traction control and throws the chassis off balance less when shifting, especially when leaning.

Specification:
- 0-5v analog high-sensitivity voltage meter GP ASG Superbike sensor
- Force cell technology and no moving parts in the sensor
- 5-15V DC power supply
- Analog output to motorcycle ECU, 2.5 V (idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable pull or push direction
- Can be used for ECUs equipped with upshift functionality only
- Fully sealed and weatherproof sensor and module
- High-precision CNC-machined stainless steel housing
- Dimensions: 45mm long, 14mm diameter
- M6 "magic thread", left and right threads in both sensor ends
