CORDONA 405YAMAFM GP SG SWITCH.

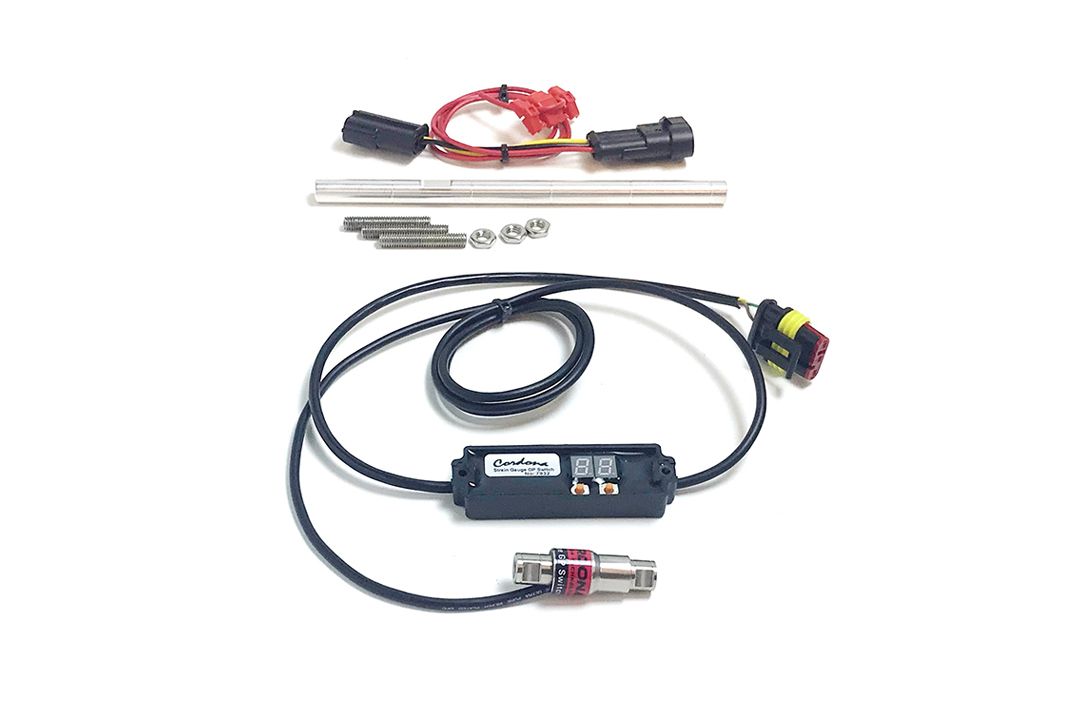

Cordona 405 YAMAFM GP SG Switch Quickshifter, stand-alone automatic shifter for connection to the original ECU, scope of delivery: sensor with control unit, wiring harness and aluminum shift rod (170 mm). For Yamaha

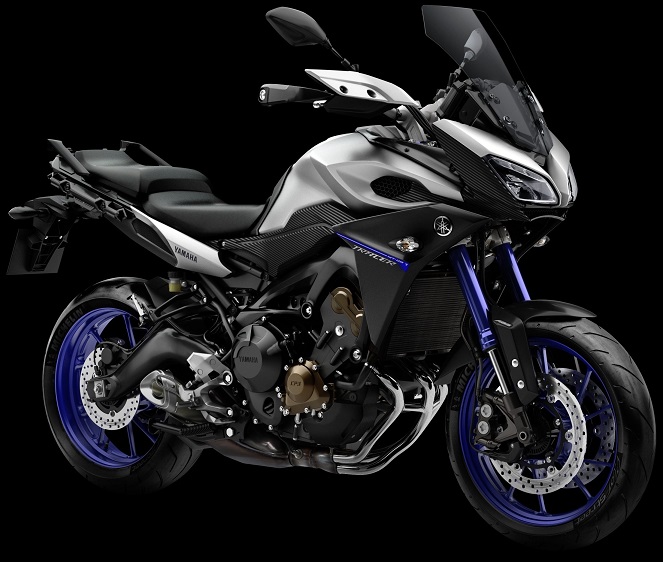

MT-09 Tracer / Tracer 900.

general description.
The Cordona GP SG Switch Quickshifter has a strain gauge / force cell technology with no moving parts and therefore convinces with very pronounced and precise gear changes. Adaptive Direction Sensing detects both pulling and pushing upshifts. Through the driver's specification during installation, the system learns whether the upshift is performed by push or pull. Programming is done via two small buttons and can be checked on a small LED display.
The Cordona GP SG Switch Quickshifter comes in a small, handy form with a diameter of only 14 mm and has no moving parts. In addition, there is a wiring harness with 12V power cable, a 170mm aluminum rod and M6 bolts and nuts.

Other possibilities:
- Fully computer controlled, 25Mhz processor
- Quick and easy plug & play mounting of the electronics
- Automatic compensation of temperature, creep and vibration
- Preload adjustment on miniature digital panel up to 1m from switch, adjustable 1-40kg
- With version 1.2, adjustable between generally open and generally closed circuit
- Completely waterproof with sealed connectors
- Configurable push or pull direction
- The sensor is Magic Threaded and accepts both right and left hand screws on each end, allowing the sensor to be mounted anywhere on the shift rod in either direction
- Shift rod may need to be shortened.
