Cordona Quickshifter COR-411

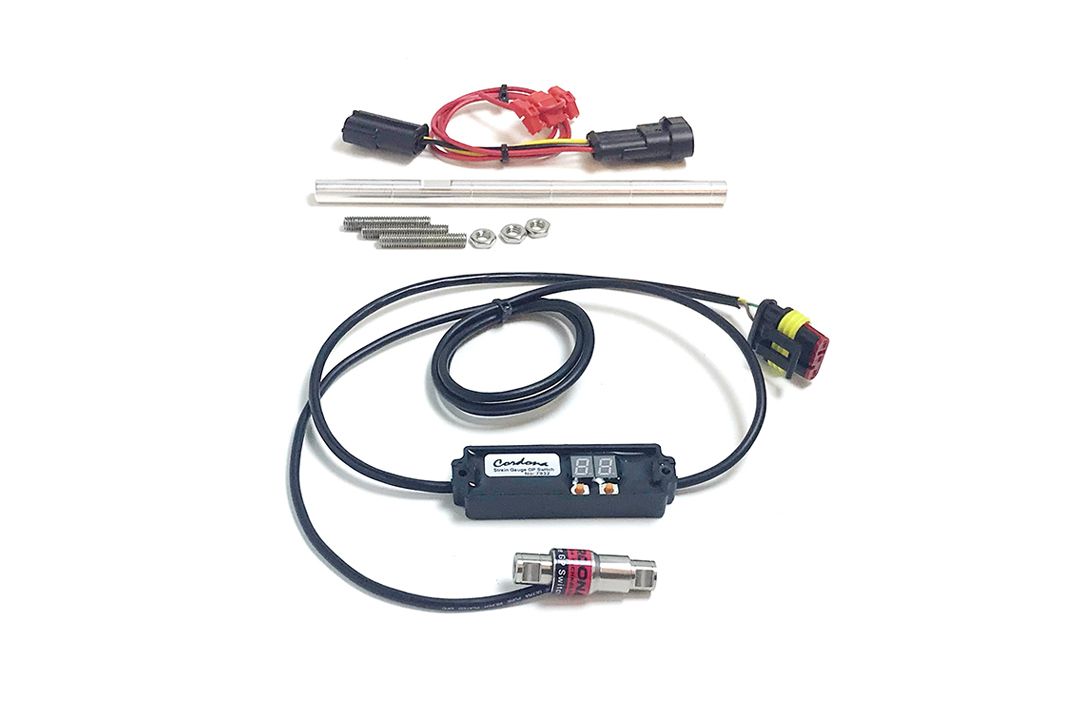

Cordona 411 GP SG Switch Quickshifter, stand-alone automatic switch for connection to the original ECU, scope of delivery: sensor with control unit, wiring harness and aluminum shift rod (132 mm). For Ducati
899 Panigale, model year 2014-2016 959 Panigale, model year 2016-2019 1199 Panigale, model year 2012-2014 1199R Panigale. 2013-2014 model year.

general description
The Cordona GP SG Switch Quickshifter has a strain gauge / force cell technology without moving parts and thus convinces with very pronounced and precise gear changes. Adaptive Direction Sensing detects both pull and push upshift operations. Through the driver's specification during installation, the system learns whether the upshift is carried out by compressive or tensile stress. Programming is done via two small buttons and can be checked on a small LED display.
The Cordona GP SG Switch Quickshifter comes in a small, handy form with a diameter of only 14 mm and has no moving parts. In addition there is a wiring harness with 12V power supply cable, a 132mm aluminum rod and M6 bolts and nuts.

Other features:
- Fully computer controlled, 25Mhz processor
- Quick and easy plug & play assembly of the electronics
- Automatic compensation of temperature, creep and vibration
- Preload adjustment on miniature digital panel from up to 1m from switch, adjustable 1-40kg
- With version 1.2, adjustable between general open and general closed circuit
- Totally waterproof with sealed connectors
- Configurable push or pull direction
- The sensor is Magic Threaded and accepts both right and left hand screws on each end, allowing the sensor to be mounted anywhere on the shift rod in either direction
- Shift rod may have to be shortened
