Cordona Quickshifter COR-421SPEC

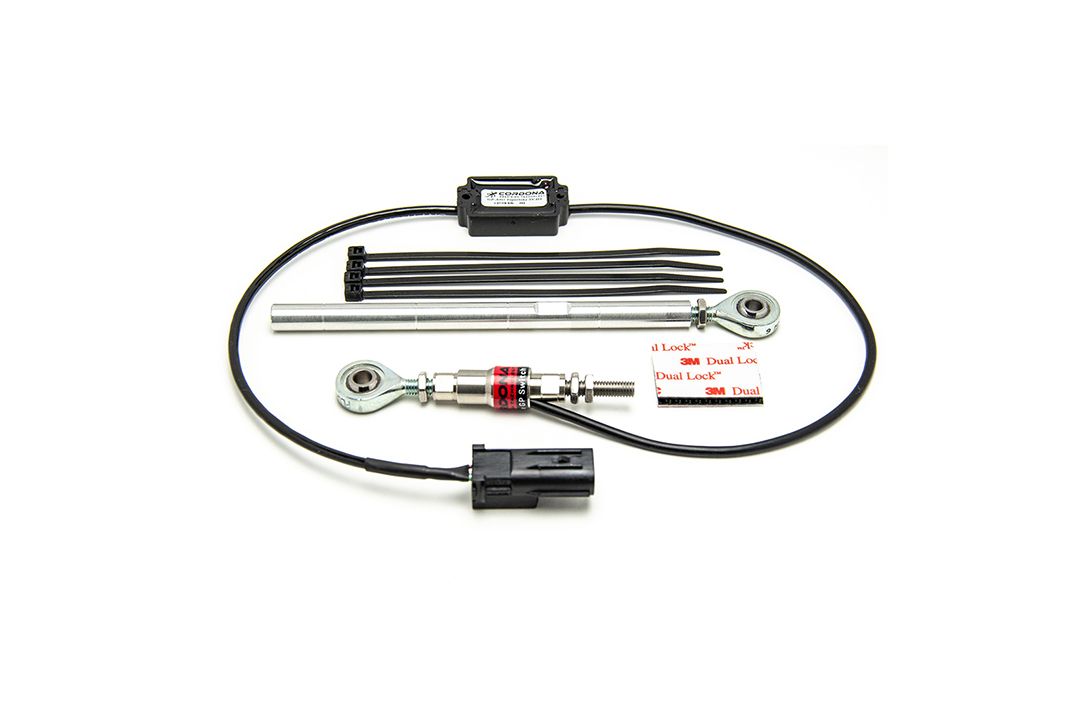

Cordona 421SPEC GP ASG Superbike quickshifter with blipper function; ready-to-install delivery consisting of module, sensor and shift rod (99 mm), for Aprilia RSV4, from model year 2017-Tuono V4, from model year 2017-

general description
The CORDONA GP ASG quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitors. It offers superior clear and smooth shifting performance, similar to Top GP and WSBK systems. It has an analogue voltage cell for ECU's with upshift function and auto blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs to many OEM and flashed street bike ECUs with analog 0-5V input.

Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise and smoother. The bike requires less traction control and does not unbalance the chassis as much when shifting, especially when leaning.

Specification:
- 0-5v analog high sensitivity strain gauge GP ASG Superbike Sensor
- Force cell technology and no moving parts in the sensor
- 5-15v DC power supply
- Analog output to motorcycle ECU, 2.5V (idle), range 0.5 to 4.5V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable pull or push direction
- Can be used for ECUs that are only equipped with upshift functionality
- Fully sealed and weatherproof sensor and module
- High precision CNC machined stainless steel body
- Dimensions: 45mm long, 14mm diameter
- M6 "magic thread", left and right hand thread in both sensor ends
