CORDONA PQ8 212 COMBO QUICKSHIFTER FOR DIV. DUCATI MONSTER / HYPERMOTARD / MULITSTRADA ETC.
Incl. VAT · free shipping from € 75
- Ducati 1200 Multistrada 2010–2014
- Ducati 1098 S Superbike 2007–2013
- Ducati 1098 Superbike 2007–2011
- Ducati 1000 S4R Monster 2008–2009
- Ducati 1000 S4RS Monster 2008–2009
- Ducati 1098 R Superbike 2007–2011
- Ducati 848 Superbike 2008–2010
- Ducati 1198 S Superbike 2009–2011
Fitment based on manufacturer data. Not sure? Our specialists will check the fit for you.
Description
Quickshifter 212 PQ8

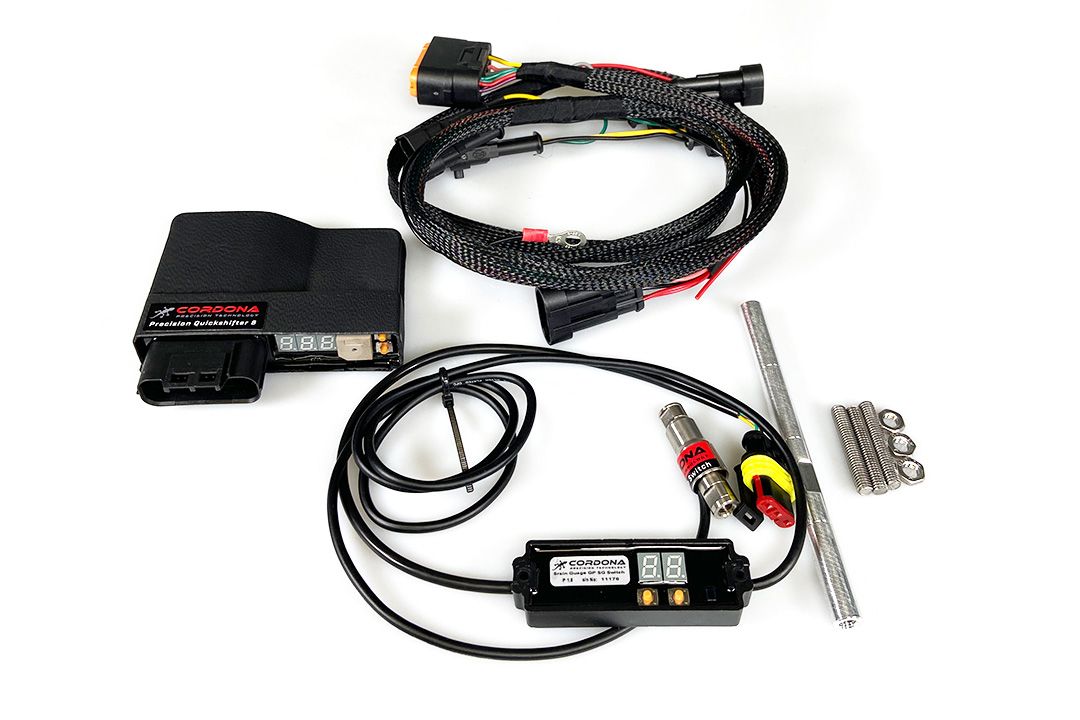

Cordona 212 PQ8 Combo Quickshifter, stand-alone automatic shifter kit consisting of module, sensor, wiring harness and shift rod (132 mm), for various Ducati models (see application list)
general description
Full throttle electronic upshifts, seamless acceleration - whether it's for race bikes, street bikes, drag bikes, go-karts, cross-karts - basically anything with a sequential transmission. The PQ8 will not generate an error message on fuel injected engines. The PQ8 was developed with the latest technology and is also continuously optimized through use in worldwide racing series.
Features:
- Stand-alone system: no additional accessories are required.
- Problem-free dismantling possible.
- Delivery of a universal shift rod (6 mm internal thread). This may need to be shortened to the correct length depending on the footrest system being used. Other shift rods in different lengths available, see accessories.

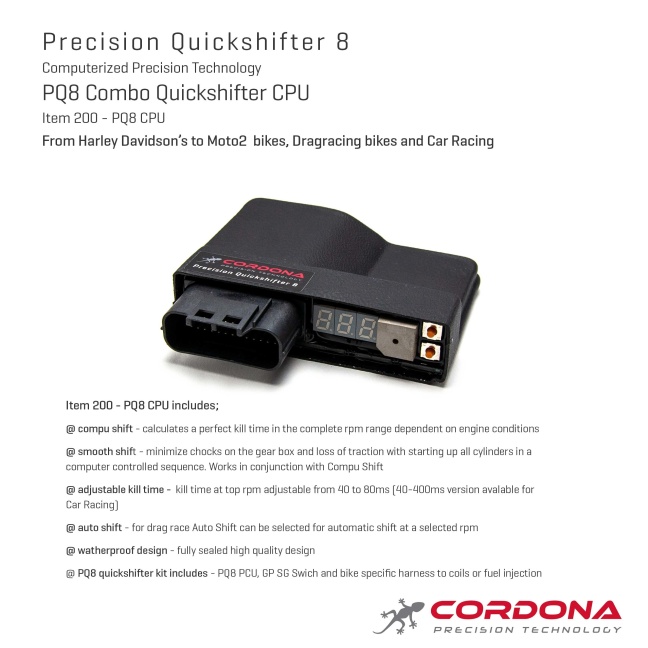

- Built on the most advanced GP technology and fully computerized with a 20 MHz CPU. Programming using a 2 button system.
- Compu Shift, calculates the perfect shift time for each individual upshift. With a selection of 500 interruption times, different engine conditions, acceleration, load and engine speed are taken into account depending on the driving condition. The break time is adjustable between 40-80 milliseconds.
- Simulates a stable engine running to the ECU during the shifting process and thus allows a smooth and stable upshifting process. No error messages are generated and it does not lead to an unintentional leaning or enriching of the mixture formation.
- Integrated "Smooth Shift" to reduce the peak loads on the transmission and chain. In addition, when shifting up, the loss of traction, as with MotoGP automatic gearshifts, is minimized. During the upshift process, all cylinders are switched off at the same time, traction is restored using a computer-aided sequence in conjunction with Compu Shift.
- Solid waterproof housing and high quality wiring harness. The circuit board is completely potted and equipped with a 26-pin connector according to aviation standards.
- Very high quality sensor based on strain gauge technology.
- Sensor works on compression and tension, can therefore also be used for reverse switching.
- All functions can be easily programmed directly on the race track or on tour, without any additional device using two buttons and the LED display.
- Supplied with ready-to-use connectors for Denso and Mitsubishi ignition coils, which are used in most Japanese sports motorcycles, as well as Triumph and KTM vehicles.For other ignition coil systems, the installation is not "plug and play", but the installation remains uncomplicated.
- In vehicles with spark plug ignition coils, the +12V power supply comes from the ignition coil via the red cable, which leads directly to the CPU of the PQ8 automatic switch. Easy assembly, since no additional cable installation for 12V power supply is required.
- Automatic on/off switching controlled by speed. Fully adjustable to prevent accidental engine shutdown by shifting into neutral at idle speed.
- Auditory signal generator for acoustic feedback during function tests and commissioning. Very useful when installed behind fairings.
- Energy saving, if no input is made on the PQ8 display for 60 seconds, the electronics go into energy saving mode. Now a flashing dot indicates that the system is ready. Very useful when using a battery pack to power the circuit breaker. The majority of the energy consumption falls on the display of the PQ8.
-Made in Sweden.
Specifications
| Brand | Cordona |
|---|---|
| Motorbike Brand | Ducati |
| Merk | Cordona |
| Motormerk | Ducati |
| Weight | 1 kg |
| EAN | 4062674191206 |
| Item number | COR-212 |
