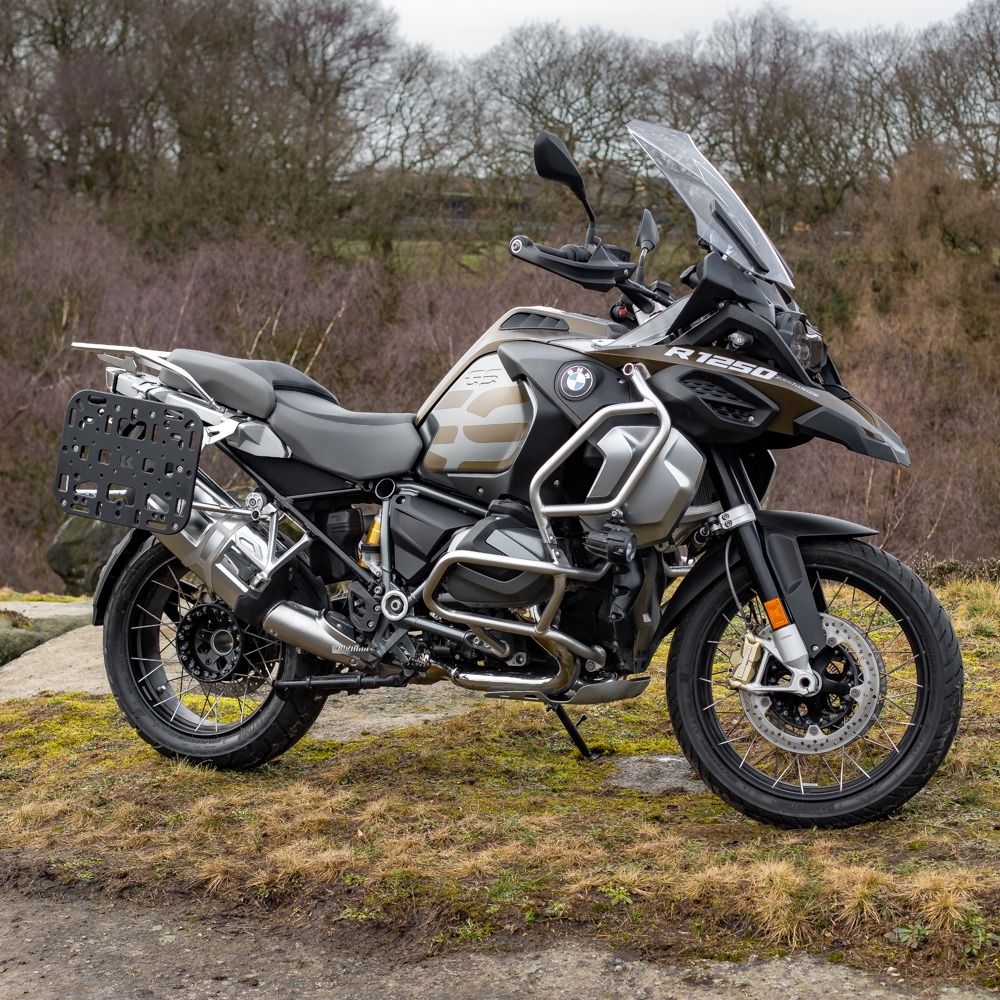

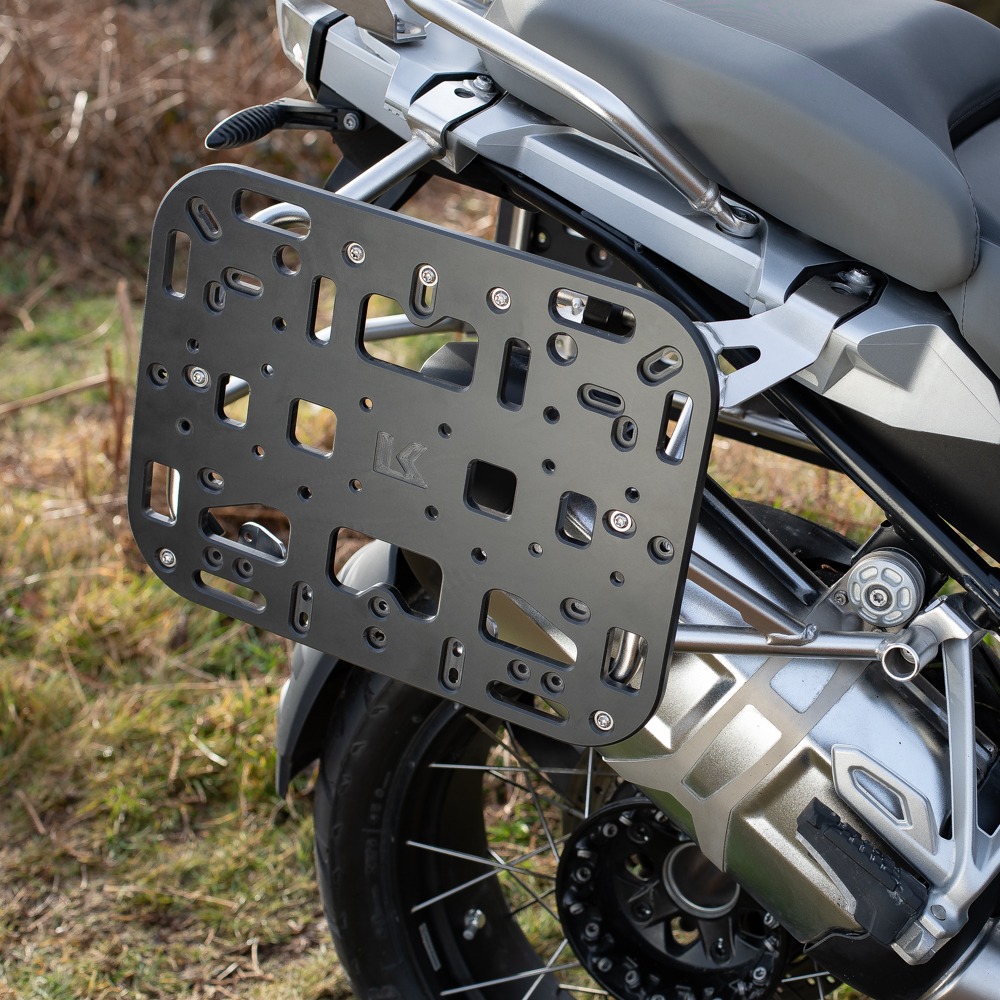

Kriega Platform, OS series For BMW F 850 GS Adventure / R 1200 GS Adventure / R 1250 GS Adventure

OS-PLATFORMS provide a secure mounting location for all Kriega OS-SOFT PANNIERS such as the OS22 or OS-32 bags.

BMW Motorrad GS ADVENTURE pannier frames are designed to mount aluminum panniers and do not have a standard flat profile on the exhaust side.
This special edition OS-PLATFORM includes a stainless steel adapter to flatten the profile and create a sturdy mounting location for the OS-PLATFORM, which then gives you the option to mount Kriega 'Soft Luggage'.

BMW frames are a standard accessory on the water-cooled R1200 GSA, the R1250 GSA and the F850 GSA.

The OS PLATFORMS are CNC machined from virtually indestructible Nylon 6 and are lighter than alloy and have no fatigue issues.
Optional mounting points are built into the design, allowing you to mount single or dual fuel and water tanks or a combination of OS-6 or OS-12 ADVENTURE PACKS and tanks.
Thanks to the flexibility of the design, you can tailor the bike completely to your adventure!

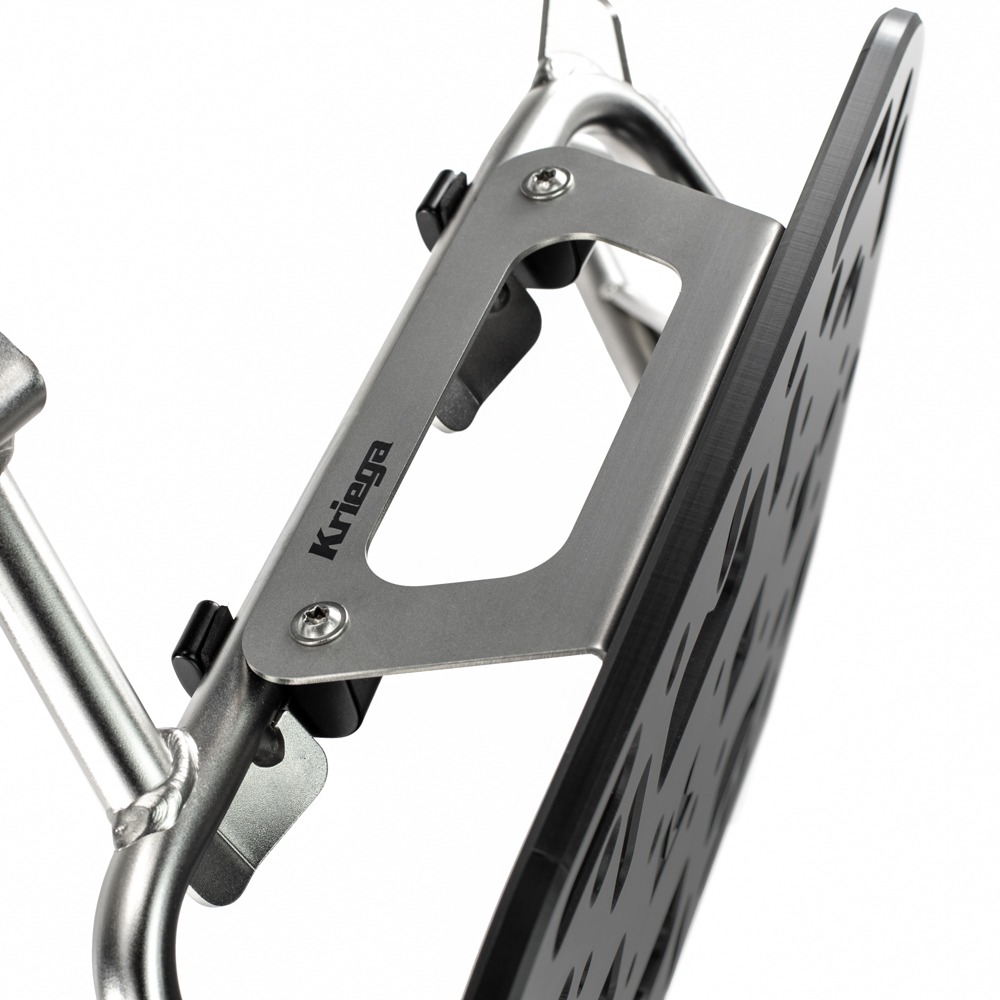

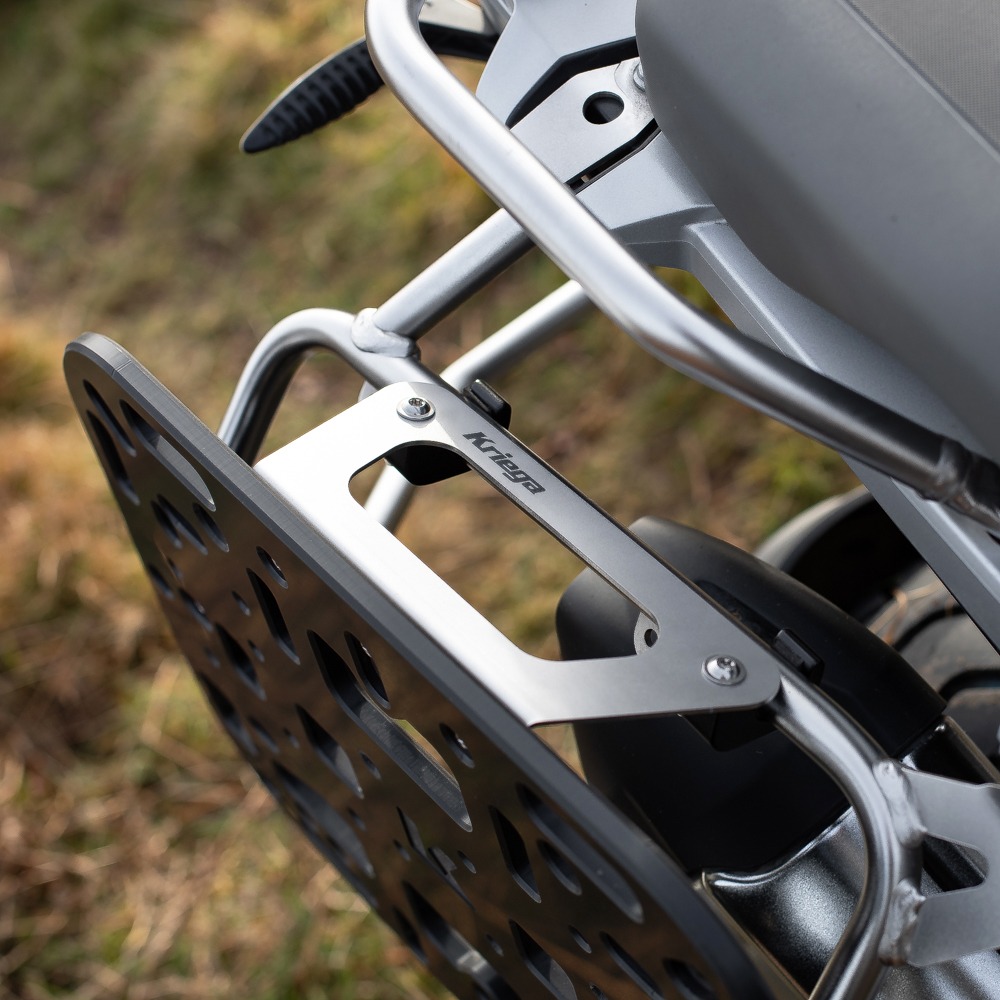

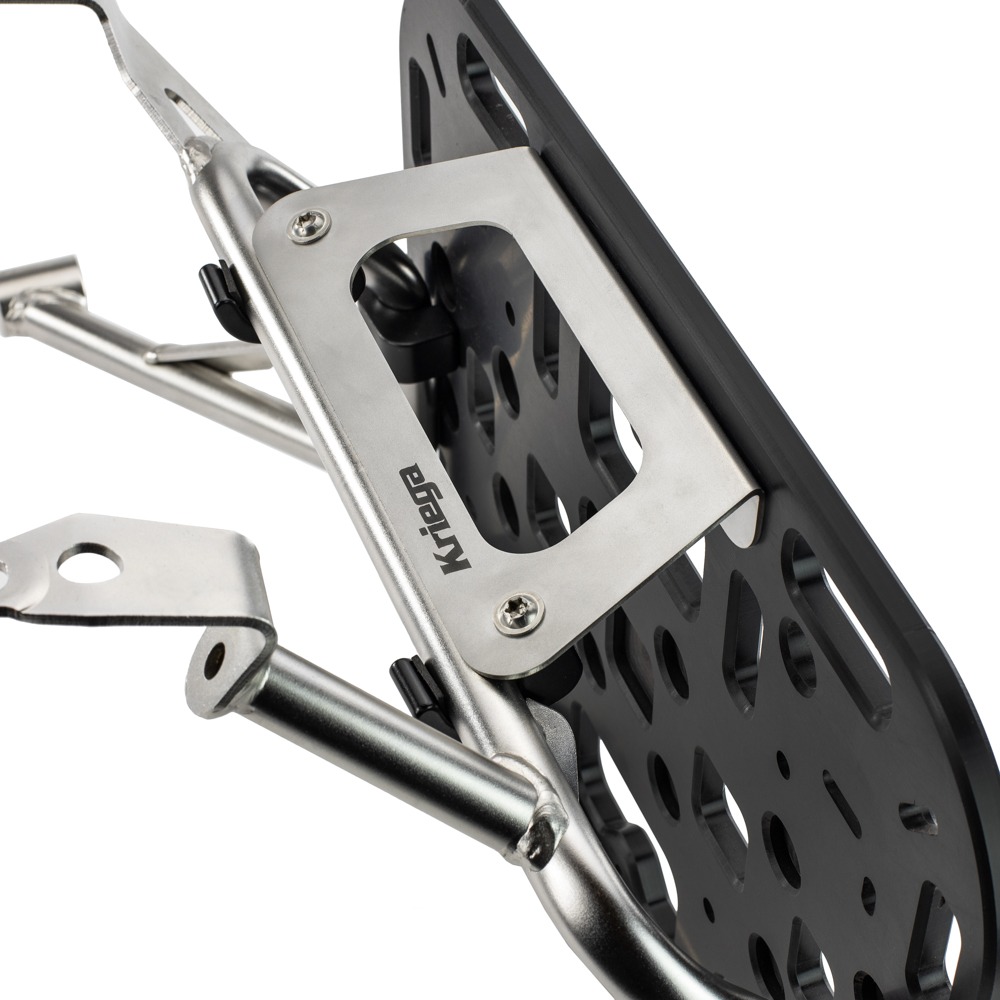

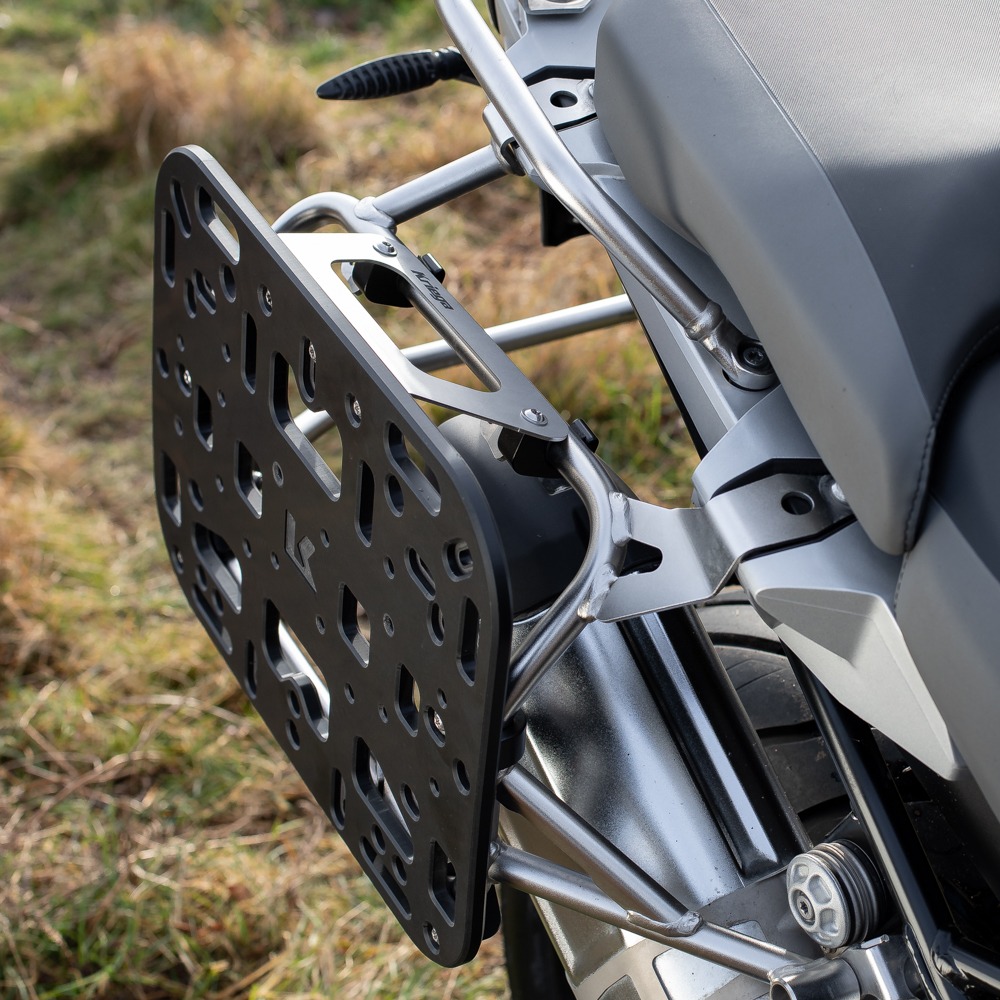

THE ADAPTOR is laser cut stainless steel that attaches to the OS PLATFORM with 3 bolts and Nyloc nuts.

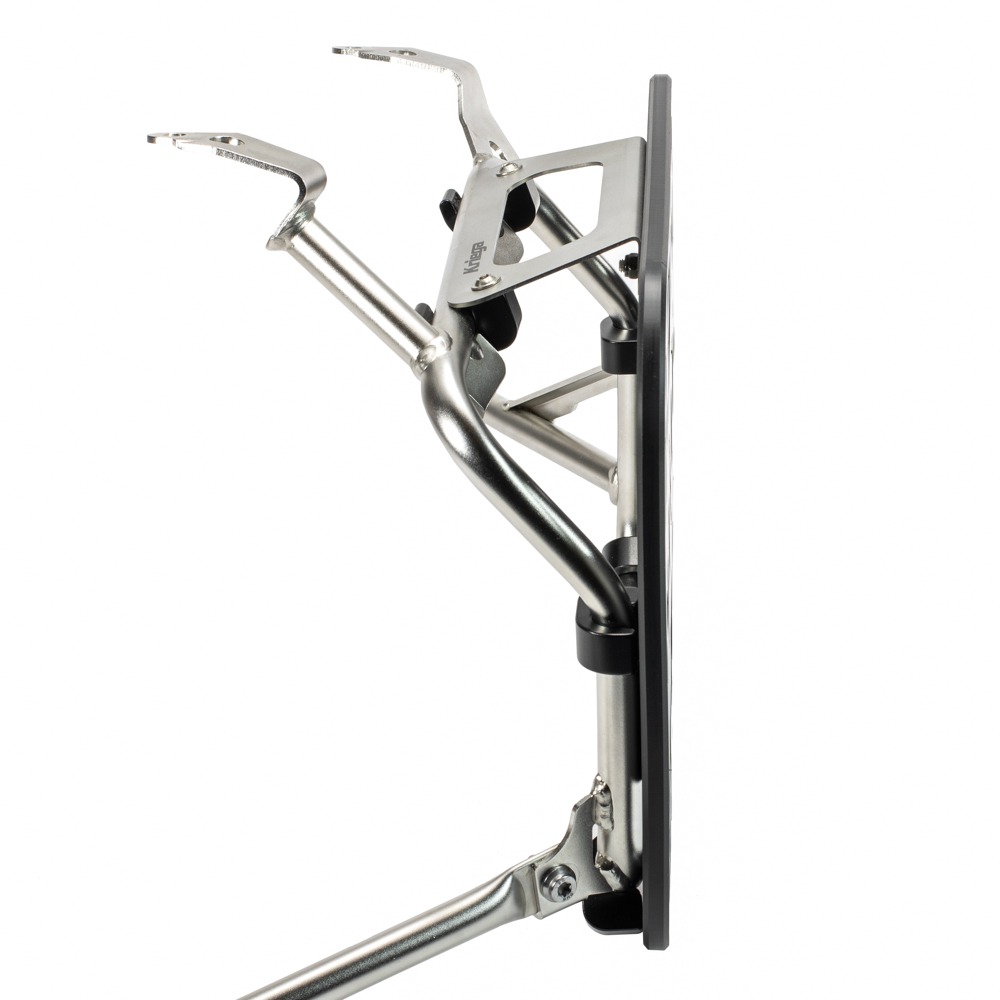

It clamps to the top of the BMW frame with 2 of the aircraft grade aluminum clamps.

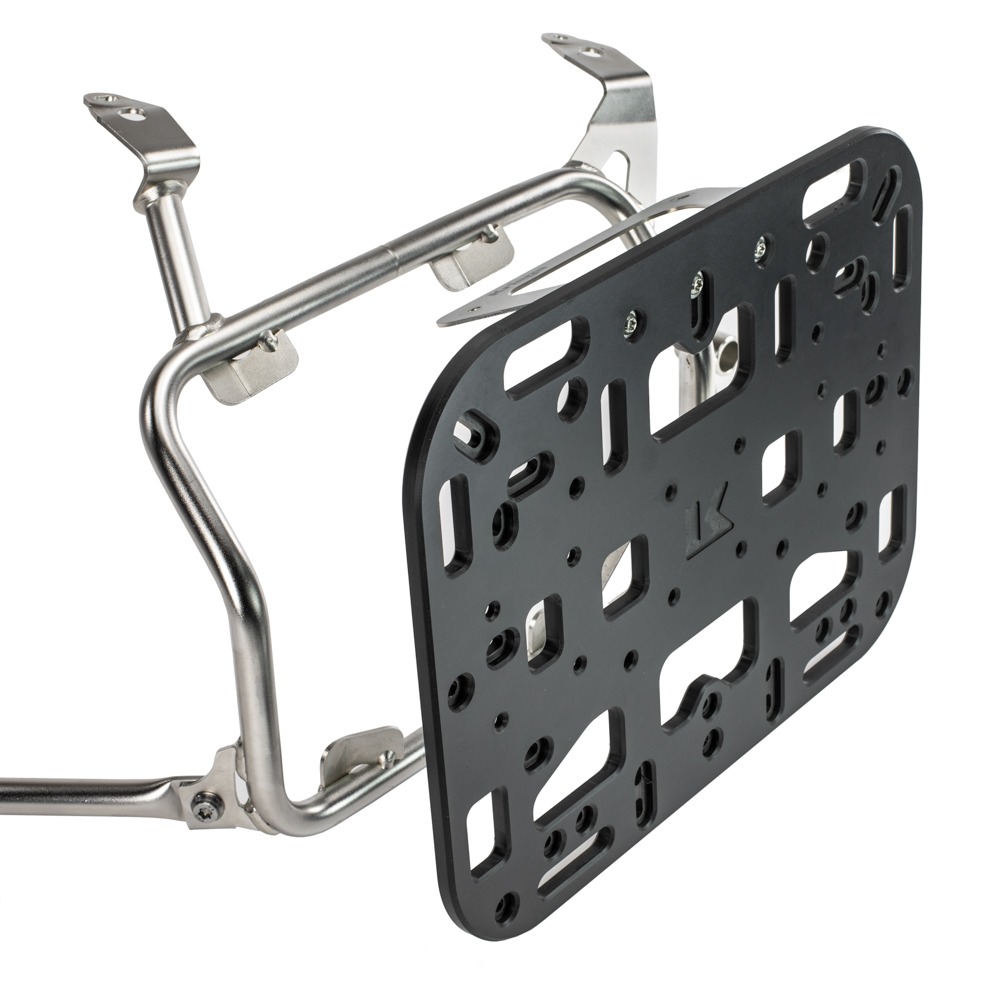

The remaining 4 clamps attach the OS-PLATFORM directly to the frame and form a very strong and stable base on which to attach an OS-Pannier, OS-Adventure Packs or fuel or water reservoirs.

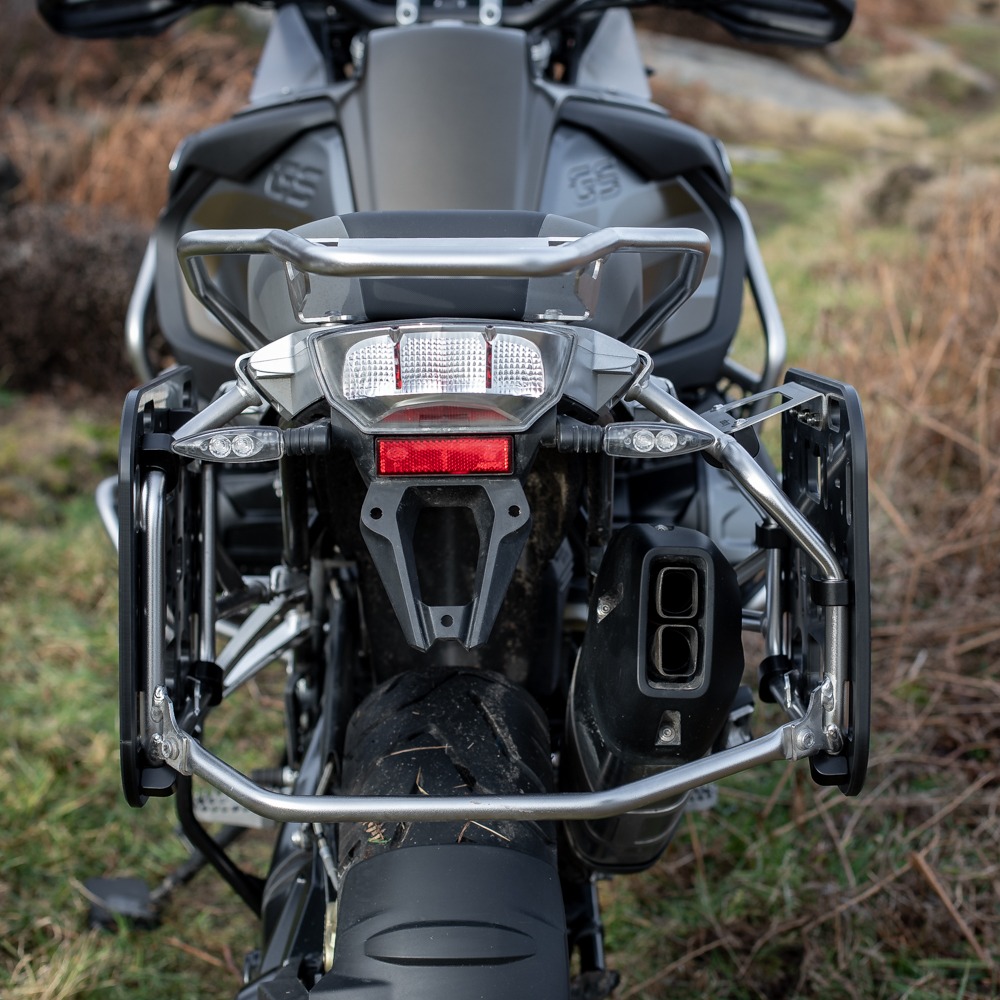

The BMW luggage frame profile on the other side of the exhaust is flat and therefore a standard OS-PLATFORM 16mm - 20mm tube can be easily mounted on this side.

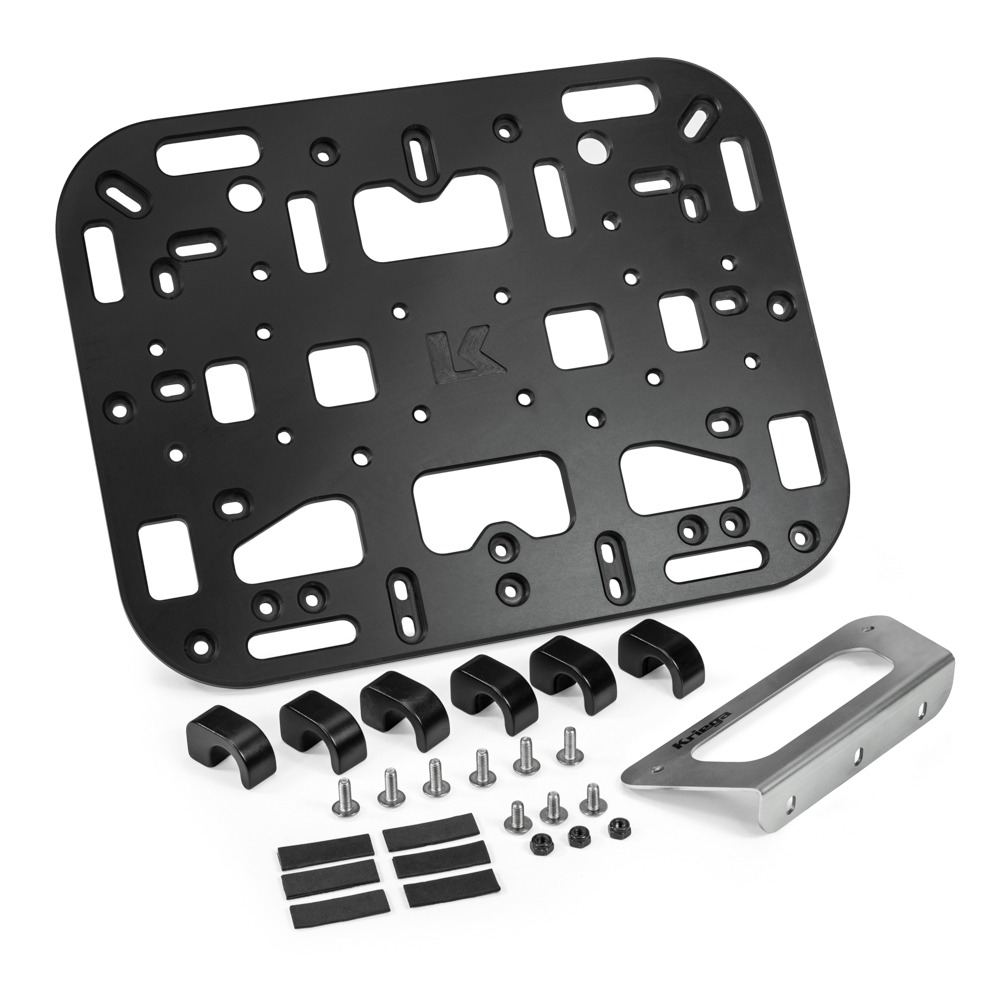

Specifications

PLATFORM

- 10mm Nylon-6 construction.
- CNC milled on both sides.
- Black anodized clamps.

ADAPTOR
- Laser cut stainless steel construction
- Laser etched Kriega logo
- Includes all fittings

PLATFORM DIMENSIONS
390 x 300 x 10 mm

TOTAL WEIGHT
1450g / 51oz
