Kriega OS Platform YAMAHA Tenere 700

OS-PLATFORMS provide a secure mounting location for all Kriega OS-SOFT PANNIERS such as the OS-22 or OS-32 side bags.

YAMAHA/GIVI luggage frames are designed to mount aluminum panniers and do not have a standard flat profile on the exhaust side.
This special OS-PLATFORM version includes a stainless steel adapter to flatten the profile and create a sturdy mounting location for the OS-PLATFORM, so you can mount Kriega 'Soft Luggage'.

The OS PLATFORMS are CNC machined from virtually indestructible Nylon 6 and are lighter than alloy with no fatigue issues.

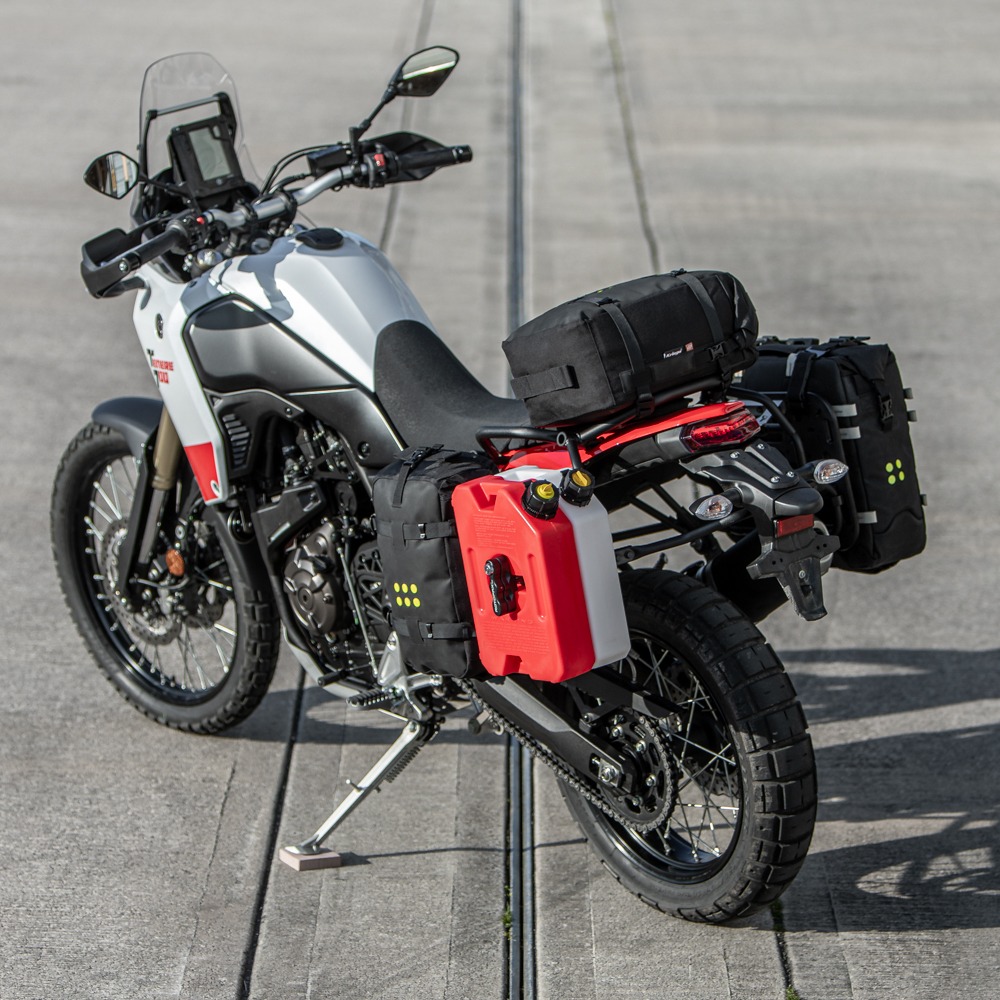

Optional mounting points are built into the design, allowing you to mount single or dual fuel and water tanks or a combination of OS-6 or OS-12 ADVENTURE PACKS and tanks.
Thanks to the flexibility of the design, you can tailor the bike completely to your adventure.

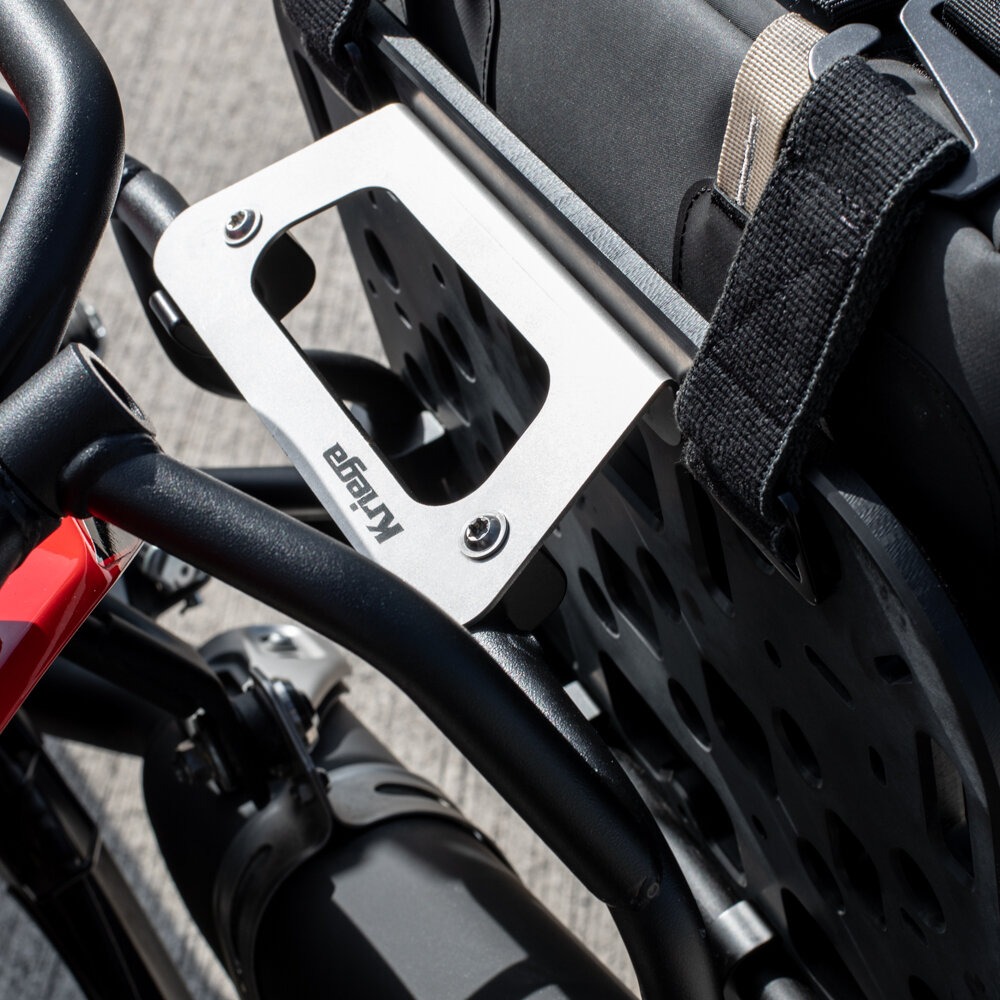

THE ADAPTOR is laser cut stainless steel that attaches to the OS PLATFORM with 3 bolts and Nyloc nuts.
It clamps to the top of the YAMAHA frame with 2 of the aircraft grade aluminum clamps.

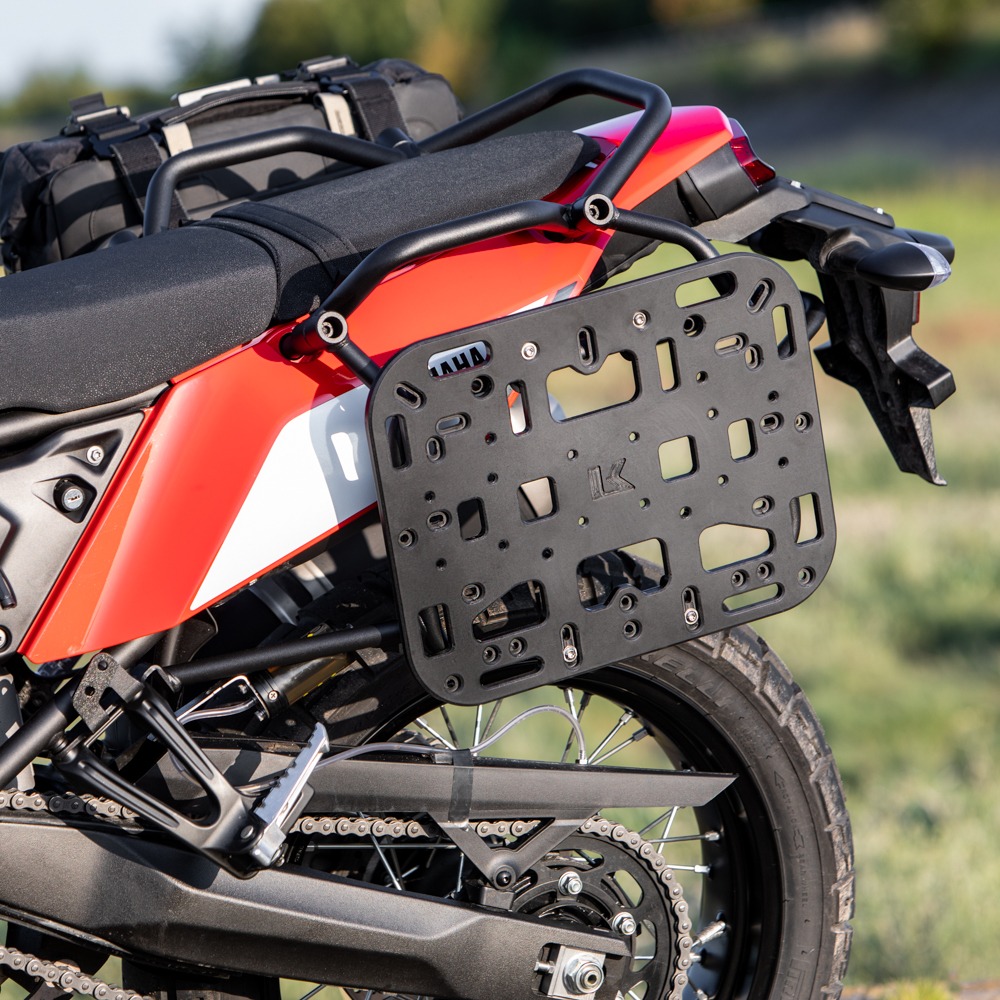

The remaining 4 clamps attach the OS-PLATFORM directly to the frame, creating a very strong and stable base for adding an OS-Pannier, OS-Adventure Packs or fuel or water reservoirs.

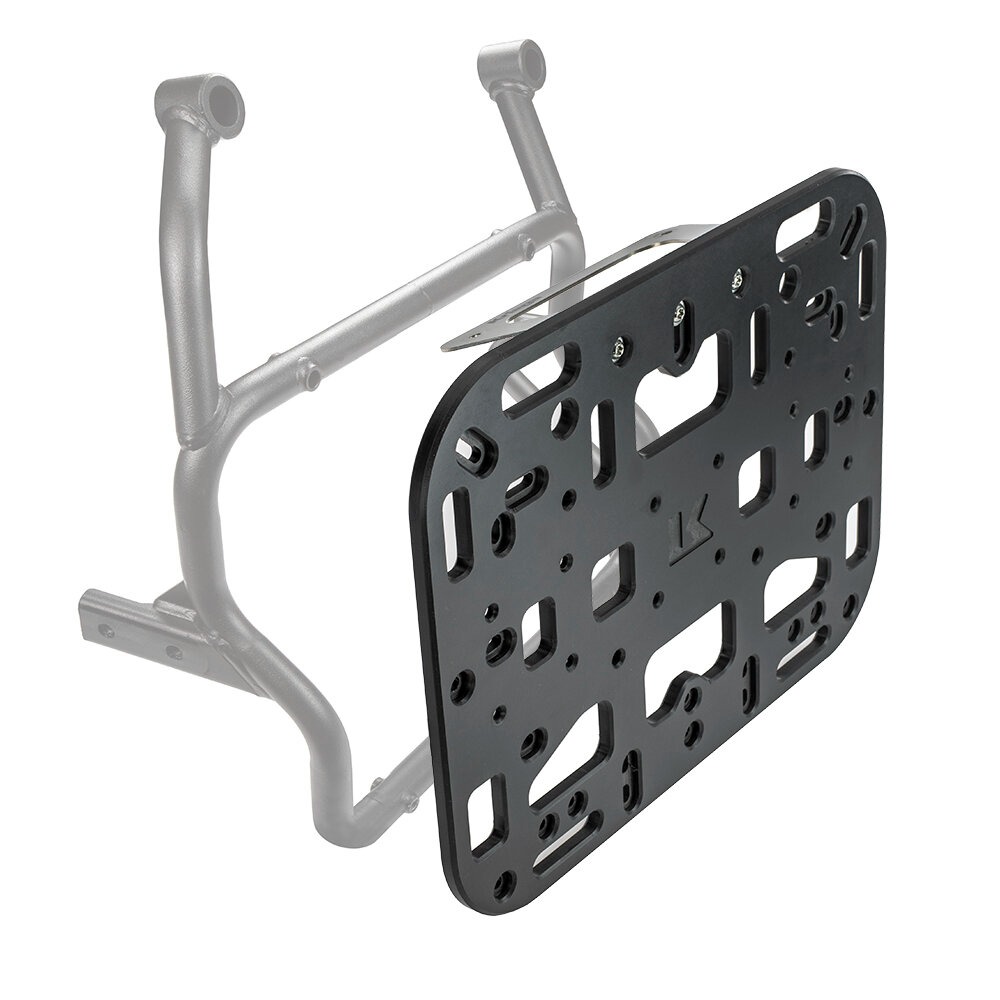

The YAMAHA frame profile on the other side of the exhaust is flat and therefore a standard OS PLATFORM 16mm - 20mm tube can be easily mounted on this side.

Specifications:

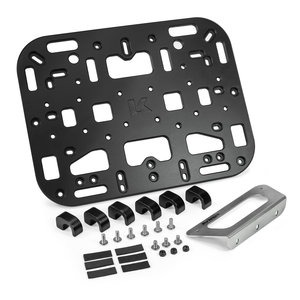

PLATFORM
• 10mm Nylon-6 construction.
• CNC machined both sides.
• Aircraft grade black anodized clamps.

ADAPTOR
• Laser cut stainless steel construction
• Laser etched Kriega logo
• Includes all fittings

PLATFORM dimensions
390 x 300 x 10 mm

Weight
1450g
